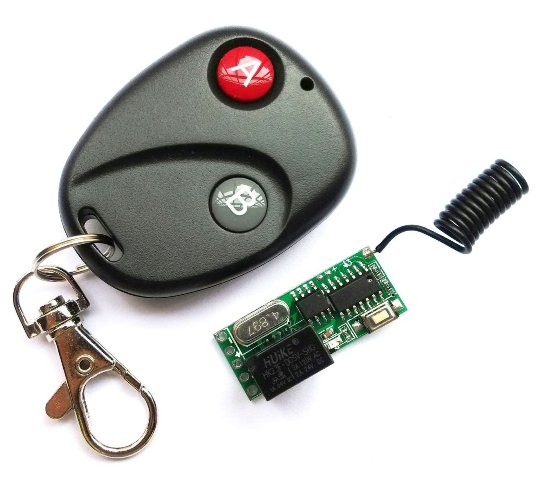

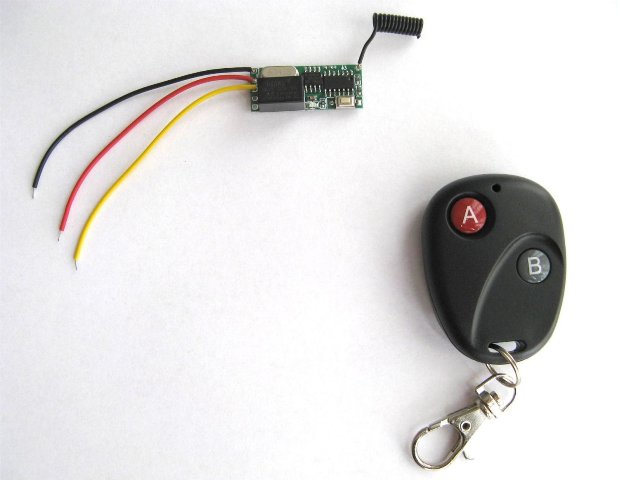

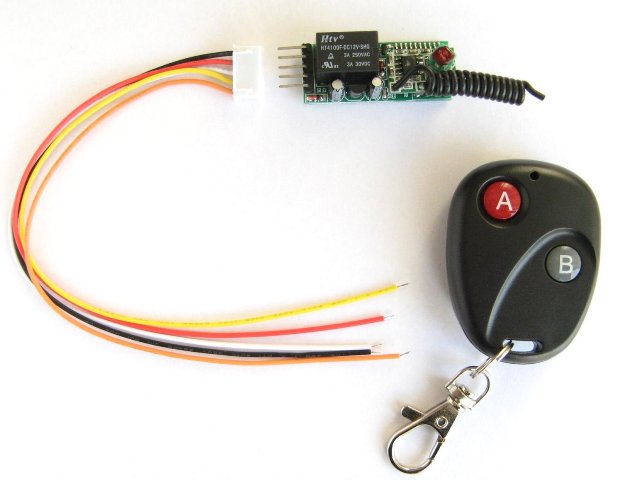

Mạch điều khiển từ xa tắt mở các thiết bị dùng điện 3V, 5V loại nhỏ đăng xuất tín hiệu thiết kế theo yêu cầu từ 30 đến 200M

Product Description

Receiver:
Channels/switches: 1
Power: DC 5V
Static current: ≤ 3.5mA
Relay actuation current: 30mA
Max load: 2A 24VDC / 2A 120VAC
Receiving sensitivity: >/ -105dBm
Dimensions: 32×13×13mm
Weight: 5g
Operating temperature: -20 ℃ ~ +80 ℃

Remote:
Channels/buttons: 2
Battery included: 12V 23A
Frequency: 433mhz
Operating Current: 30mA
Distance: 20-200M
(please note that is the ideal distance without any block and signal interference, it would rise and fall about 10%-50% with interference).
Size: 50 x 40 x 13mm approx (plus keyring)
Weight: 23g

Add extra remotes by pressing the learning button inside the receiver for 2 seconds until the receiver led light flashes fast, then pressing a button on the remote. The light flashes again once successfully added.

The control type can be changed inside the receiver by a simple soldering connection as shown in the manual, but as standard these are supplied as Latch type.

Latch type: Press one button on the remote, the switch is on till you press the other button to turn off.

These units can be used for starting and stopping, or the connection and break of devices and electrical machinery. The product could also achieve the requirements of various kinds of special control procedures.

Ideal use in:
Vehicle central locking systems
Garage doors
Electronic gates
TV, Motors, Fans, Cameras, Video Signals, Audio Signals, RC applications, Electric Doors/ Locks/ Windows/ Curtains and more.

Instructions are available to download here http://www.safaridrives.co.uk/manuals/DC3-5V-1CH.doc
